| Accuracy | Up to 0.04 mm |
| Connectivity | USB |
| Display | No Alignment: Marker, Texture, Feature, Hybrid, Turntable Coded Targets |
| Manufacturer | Shining 3D |
| Manufacturer country | China |
| Outer dimensions millimeters (xyz) | 370 x 365 x 135 mm |
| Software | ExScan Pro, Solid Edge SHINING 3D Edition |
| Technology | Structured light |
| Computer requirements (recommended) | Graphics card: NVIDIA GTX1080 and higher; video memory: >4G, processor: I7-8700, memory: 64G; interface: high-speed USB 3.0 |
| Computer requirements (required) | Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher; processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G |
| Max. resolution | Up to 0.2 mm |
| Output formats | OBJ, STL, ASC, PLY, P3, 3MF |

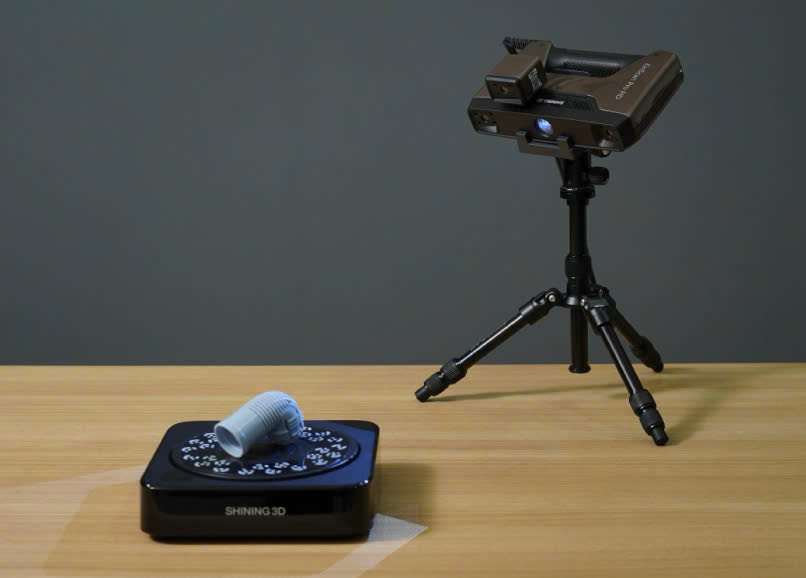

| Rotating table | Yes, with Industrial Pack Add-on |
| Scan speed | Up to 3,000,000 points/s 10FPS (Handheld HD Scan mode); Up to 1,500,000 points/s 30FPS (Handheld Rapid Scan mode) |
| Working distance | 510 mm |
| Scan volume max | 310 x 240 mm |
| Texture / Colors | Yes, with Color Pack add-on |
| Scan volume min | 209 x 160 mm |
| Weight | 1.3 kg |
