| Dimensions | 179 x 235 x 334 mm |
| Connectivity | USB, Wi-Fi |
| Laser spot size | 0.08 x 0.06 mm diode / 0.03 x 0.03 mm IR |
| Software | xTool Creative Space, LightBurn |
| File types | SVG, DXF, PNG, JPG, BMP, etc. |
| Laser module output power | 10W diode / 2W IR |

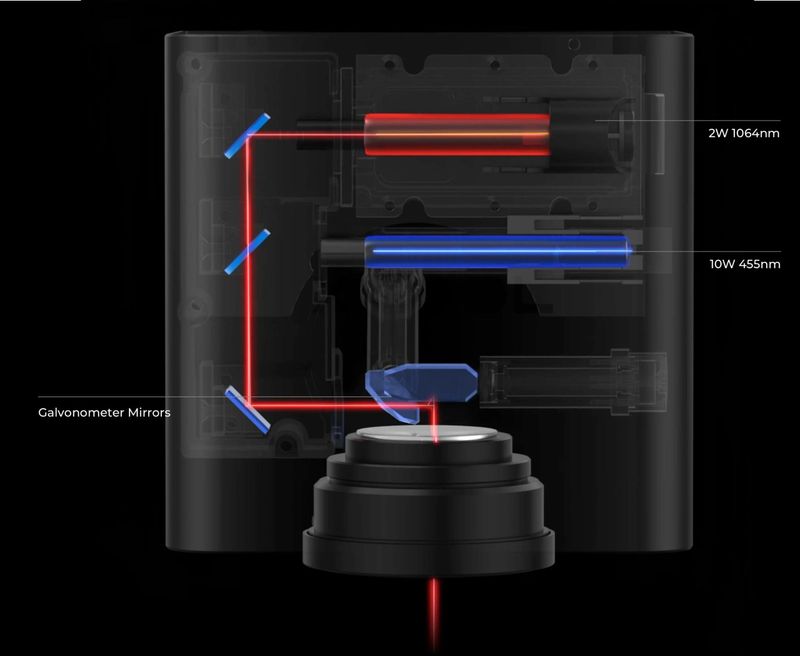

| Laser type | Diode laser + infrared laser |

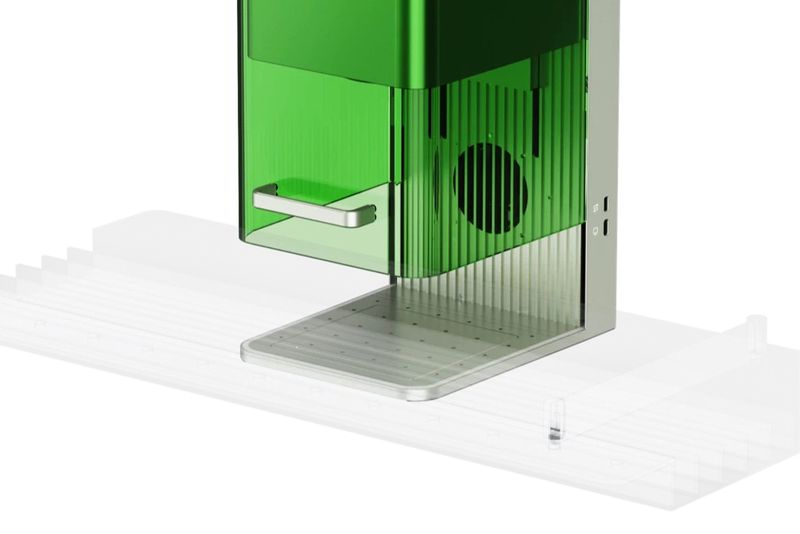

| Max. workpiece height | 113 mm |
| Operating system | Windows, macOS |
| Routing speed | 4000 mm/s |
| Weight | 4.6 kg |
| Working area | 100 x 100 mm |
| Wavelength | 455 nm diode / 1064 nm IR |
